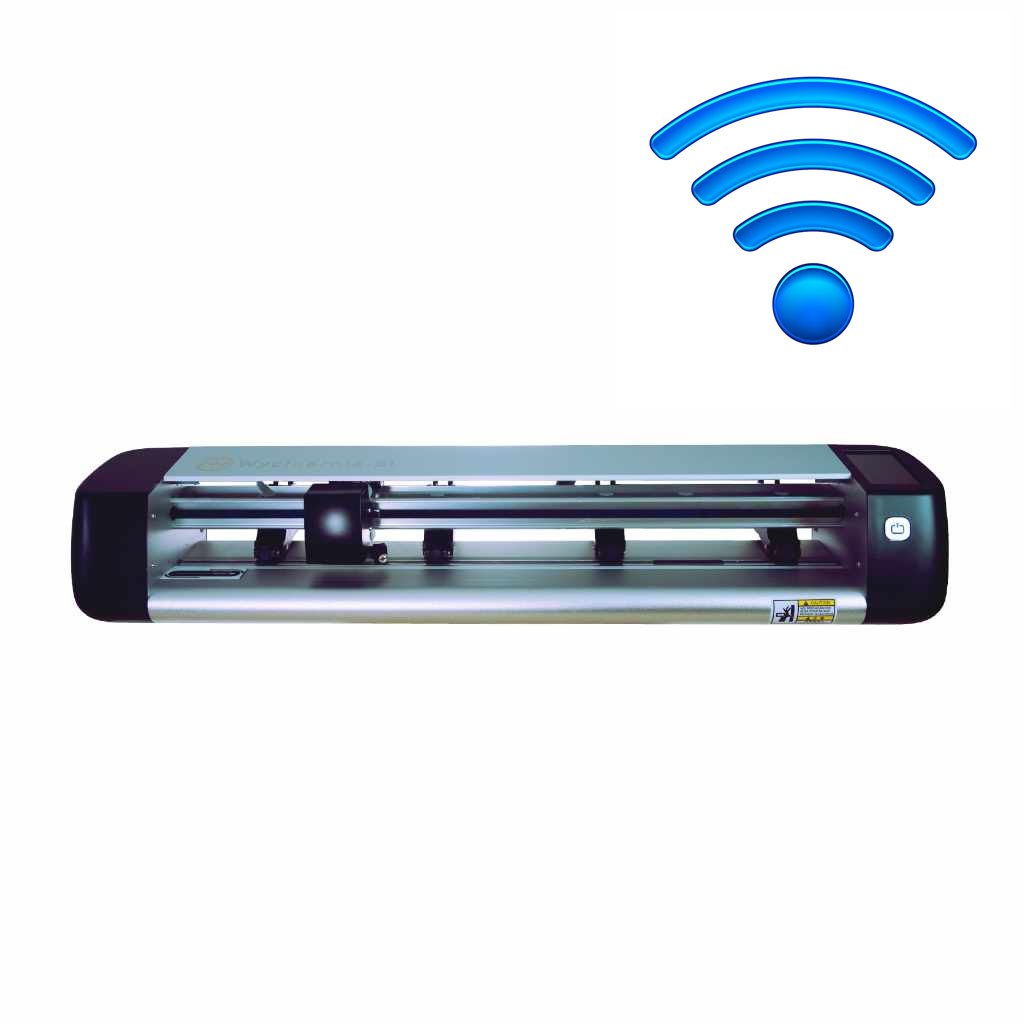

Cutting plotter Skycut CX24 with WIFI module
The Skycut CX24 is a plotter with high precision cutting, ideal for professional users.
Skycut CX24 is a high-quality cutting plotter with excellent cutting precision. Thanks to the cutting width of 61 cm, the device is perfect for cutting flex and flock foil directly from the roll. The included cutting mat allows you to cut in many materials without a liner, including paper.
The WIFI module installed in the plotter allowes of wireless connection to the plotter and cutting operation.
Technical parameters:
- Max. cutting width: 61 cm
- Max. materials width: 72 cm
- Max. print cutting width: 57 cm
- Knife pressure: 50 g - 800 g
- Max. cutting speed: 600mm/s
- Max. working speed: 700mm/s
- Cutting precision: +/- 0.01 mm
- Repetition accuracy: 0.082 mm
- Quantity of heads: 1
- Drive Stepping Motor
- Memory Buffer: 128 MB
- Interfaces: USB, WIFI (when purchasing the module), USB wire
- Power: <100W
- Working conditions: +5°C – +35°C
- Warranty: 2 years
Set contains:
- Ploter Skycut CX24
- Cutting mat (300 x 480 mm)
- Blade holder
- Blade 45° – 2 pcs.
- Blade 60°
- Test pen
- USB wire
- Power supply to operate the plotter, it is necessary to select the software
In the set you get:
- SignCut Pro 2 - Free 3 Month License (Windows & Mac)
- Manual in Polish (SignCut Pro 2 software)
We recommend buying Sign Master due to the perpetual license and wide access to training materials. Thanks to this program, it is possible to operate the plotter on Windows.
The purchase of Sign Master also includes a 100-page course in PDF format, in Polish. Using the Sign Master program makes it easier to learn how to use the plotter, choose the right cutting settings and learn how to cut printouts.
Skycut plotters can be operated using programs:
- SignMaster – perpetual license – Windows
- SignCut Pro 2 (free 3 months) – Windows, Mac
- Adobe Illustrator (free plugin)*- Windows
- CorelDraw (free plugin)**- Windows
- Sure Cuts A Lot
- Flexi 12
* Works with Adobe Illustrator CS6, Adobe Illustrator 2015, Adobe Illustrator 2017, Adobe Illustrator 2018, Adobe Illustrator 2019, Adobe Illustrator 2020, Adobe Illustrator 2021. Plugin under development, with limited functionality.
** Plugin under development, with limited functionality.
Plugins for Adobe Illustrator and CorelDraw are under development and currently have limited functionality and do not allow you to use the full capabilities of the plotter, therefore we recommend using the Sign Master program to fully support Skycut plotters.
Program system requirements according to the specification of the selected plotter program.
Vinyl cutting
The Skycut CX24 plotter is perfect device for cutting roll materials. It can handle popular film rolls with a width of 61cm available on the Polish market. Adjustable rollers allow for maximum use of the foil surface. The plotter can also cut small pieces of foil with a width of 10 cm without a mat.
There is a dedicated stand that makes it easy to work with foils by placing a roll of foil and loading it easily. This additional equipment significantly increases the comfort of working with the plotter.
Print cutting
Skycut plotters are equipped with a high-quality camera that enables precise cutting of printouts. The camera can read tags in any color that have been printed on a variety of materials, such as paper, reflective foils, vinyl, flex, flock and even transparent foil sheets.
Construction of the Skycut CX24 plotter
Touch Screen
The device has a color touch screen with high sensitivity. It allows easy operation of the device by providing the most important functions of the Skycut CX24 plotter. It includes, among others, operations such as repeating the last action or multiple duplication of a pattern, which allow you to configure pattern duplication based on the table grid, which allows you to select the number of columns and rows and set the distance between repeated patterns.
Adjustable pressure rollers
The position of each of the pinch rollers can be individually set to match their spacing to the material being cut. This allows you to use the plotter without a cutting mat.
Metal covers
The plotter's cover is made of metal, which makes it much more durable and stable. The device also has a professional, modern design.
Lighting
The plotter has built-in LED lighting with the ability to change the color of the light. This makes it easier to work in dark rooms and when cutting in the evening. Illumination also improves the precision of reading marks for the Print&Cut function.
Additional accessories
Additional accessories are sold separately and are not included with the plotter.
Stand
A dedicated stand has also been created for the device for stable setting of the plotter. The stand also has a film holder, which can then be loaded into the device. Check Stand for Skycut CX 24.
Basket for Skycut plotters
The basket for Skycut plotters is the perfect tool to cut long pieces of foil. The basket protects vinyls protects against dirt or creasing. Check Basket for Skycut CX 24.
SignMaster software
Graphics software for Skycut cutting plotters Standard or Pro. Check SignMaster software for Skycut CX 24 plotters
Skycut engraving tool
Thanks to the optional blade that can be mounted in the plotter holder, the device is able to perform engraving on materials such as plexiglass or soft metals.
